Fire Resistant & Armoured Fieldbus Cable

Fire Resistant & Armoured Fieldbus Cable

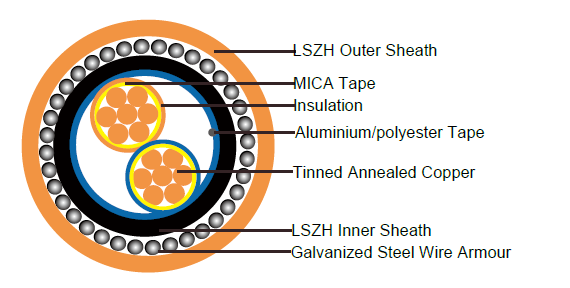

Construction:

Pair No. X Conductor Size

1PX18AWG

Conductor

7 Strands tinned copper

Fire Barrier

MICA Tape

Insulation

XLPE

Shielding

Aluminium foil

Drain Wire

Tinned copper wire

Inner Sheath

LSZH

Amour

Galvanised steel wire

Outer Sheath

LSZH

Nominal Overall Diameter

17.5+/-2.0mm

Approx. Weight

385 KG/KM

Core Color

Blue&Orange, other color is available upon request.

Sheath Color

Orange,other color is available upon request.

Electrical Data:

Characteristic Impedance @ 31.25KHz

100 Ω ± 20Ω

Conductor Resistance

23.5 Ohm/km max.

Test Voltage

1.0KV

Operate Voltage

300V

Mutual capacitance

80 pF/m

Max. Attenuation

39KHz

3.0dB/km

Technical Data:

Min. Bending Radius

10 x OD mm

Operating Temp.Range, min.

-40 °C

Operating Temp.Range, max.

+90 °C

Fire Performance:

Circuit Integrity

IEC 60331

flame Retardance (single vertical wire or cable test)

Iec 60332-1-2; en 60332-1-2

Reduced fire Propagation (Vertically-mounted bundled wires & cable test)



Iec 60332-3-24; en 60332-3-24

Halogen free

Iec 60754-1; en 50267-2-1

no corrosive Gas emission

Iec 60754-2; en 50267-2-2

Minimum smoke emission

Iec 61034-2; en 61034-2
